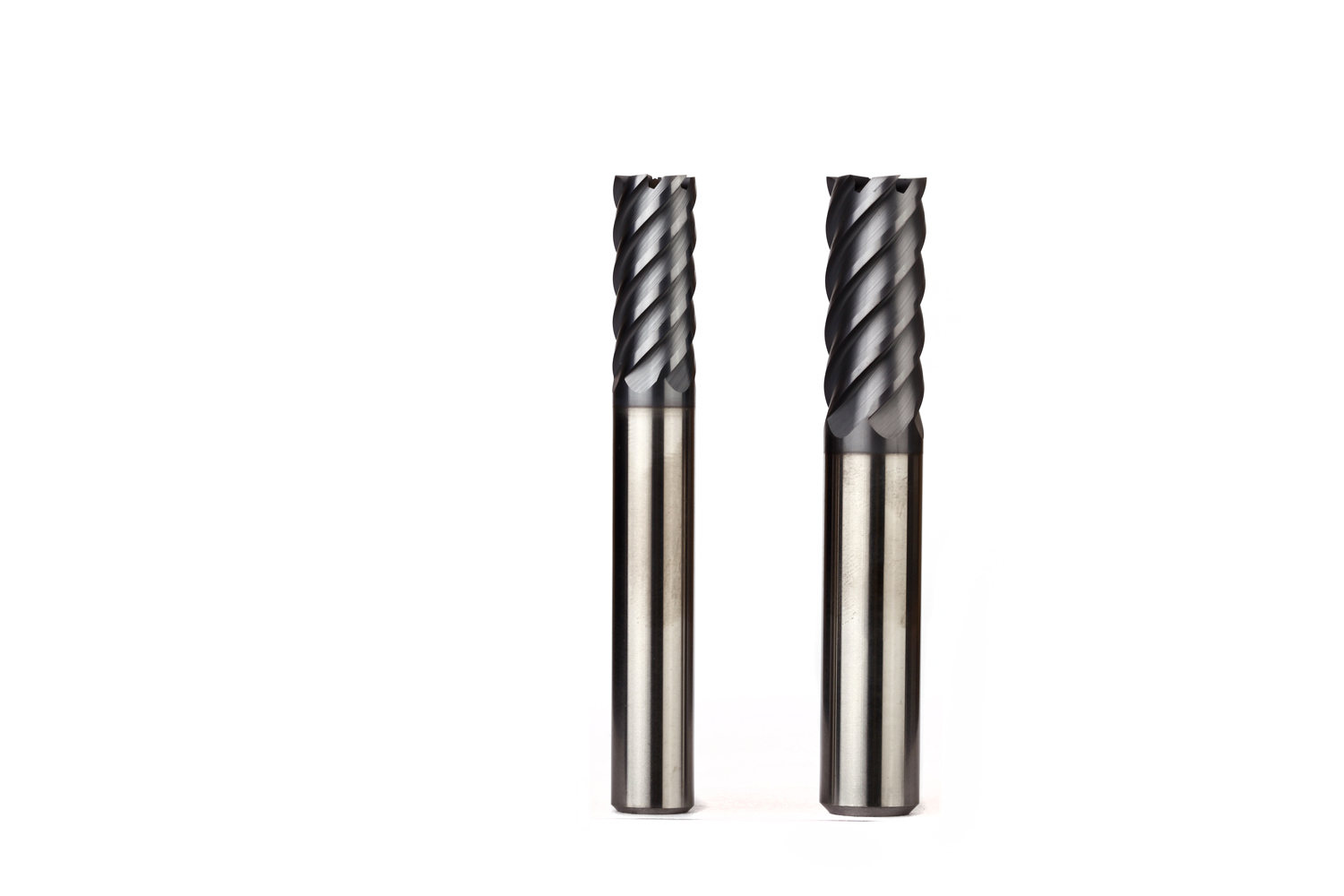

●Premium grade carbide
●Suitable for Stainless Steel and Steel machining, working hardness reach to HRC62
●6F, Square end, D coating, High hardness
●Specially designed for fine milling process and qualified for large depth side milling. Large core thickness and big rake angle is suitable for high-speed and medium-speed finish machining of all kinds of materials.
●Recommend Application: General machining, Car spare parts and Mould Industry.
| P/N |
D
（mm）
|
ap
(mm)
|
d
(mm)
|
L
(mm)
|
F# | Tip | Coating |
| S645 060 D 41 080 S D | 6 | 25 | 6 | 80 | 6 | SQ | Microkevlar D |
| S645 080 D 43 090 S D | 8 | 35 | 8 | 90 | 6 | SQ | Microkevlar D |
| S645 100 D 45 100 S D | 10 | 45 | 10 | 100 | 6 | SQ | Microkevlar D |
| S645 120 D 41 100 S D | 12 | 50 | 12 | 100 | 6 | SQ | Microkevlar D |
| S645 160 D 40 150 S D | 16 | 65 | 16 | 150 | 6 | SQ | Microkevlar D |
| S645 200 D 35 150 S D | 20 | 70 | 20 | 150 | 6 | SQ | Microkevlar D |
| S645 Speed and Recommendations | ||||||||||||
| ISO GROUP | CMG | Type of cut |
ap*Dc |
ae*Dc |
Vc |
Parameters |
6 | 8 | 10 | 12 | 16 | 20 |
| P |
P 1-2 |
Side Milling |
1.5 | 0.05 |
98 78-122 |
RPM | 5175 | 3900 | 3075 | 2625 | 1950 | 1550 |
| Fz | 0.03 | 0.038 | 0.045 | 0.053 | 0.062 | 0.069 | ||||||
| F | 924 | 891 | 831 | 831 | 726 | 641 | ||||||
|
P 3-4 |
Side Milling |
1 | 0.03 |
65 52-81 |
RPM | 3450 | 2600 | 2050 | 1750 | 1300 | 1025 | |
| Fz | 0.03 | 0.038 | 0.045 | 0.053 | 0.062 | 0.069 | ||||||
| F | 627 | 594 | 555 | 555 | 482 | 429 | ||||||
|
P 5-6 |
Side Milling |
1 | 0.02 |
50 40-62 |
RPM | 2650 | 2000 | 1825 | 1600 | 1000 | 800 | |
| Fz | 0.025 | 0.023 | 0.029 | 0.033 | 0.046 | 0.052 | ||||||
| F | 369 | 276 | 317 | 317 | 278 | 251 | ||||||
| K |
K 12-13 |
Side Milling |
1.5 | 0.05 |
104 83-130 |
RPM | 5495 | 4140 | 3297 | 2747 | 2070 | 1648 |
| Fz | 0.018 | 0.023 | 0.029 | 0.035 | 0.04 | 0.044 | ||||||
| F | 577 | 575 | 575 | 577 | 497 | 433 | ||||||
| M |
M 8-9 |
Side Milling |
1.5 | 0.5 |
85 68-106 |
RPM | 4525 | 3383 | 2715 | 2263 | 1691 | 1358 |
| Fz | 0.014 | 0.018 | 0.023 | 0.028 | 0.031 | 0.035 | ||||||
| F | 380 | 380 | 379 | 380 | 310 | 285 | ||||||
| M10 |
Side Milling |
1 | 0.4 |
75 60-84 |
RPM | 3960 | 2985 | 2376 | 1980 | 1492 | 1188 | |
| Fz | 0.014 | 0.018 | 0.023 | 0.028 | 0.031 | 0.035 | ||||||
| F | 333 | 331 | 331 | 333 | 278 | 249 | ||||||
| M11 |
Side Milling |
0.6 | 0.3 |
55 44-69 |
RPM | 2909 | 2189 | 1745 | 1455 | 1095 | 873 | |
| Fz | 0.014 | 0.018 | 0.023 | 0.028 | 0.031 | 0.035 | ||||||
| F | 244 | 236 | 243 | 244 | 203 | 183 | ||||||
| S | S22 |
Side Milling |
1 | 0.4 |
70 56-84 |
RPM | 3714 | 2785 | 2228 | 1857 | 1393 | 1114 |
| Fz | 0.016 | 0.021 | 0.028 | 0.035 | 0.042 | 0.048 | ||||||
| F | 356 | 350 | 374 | 390 | 351 | 320 | ||||||
