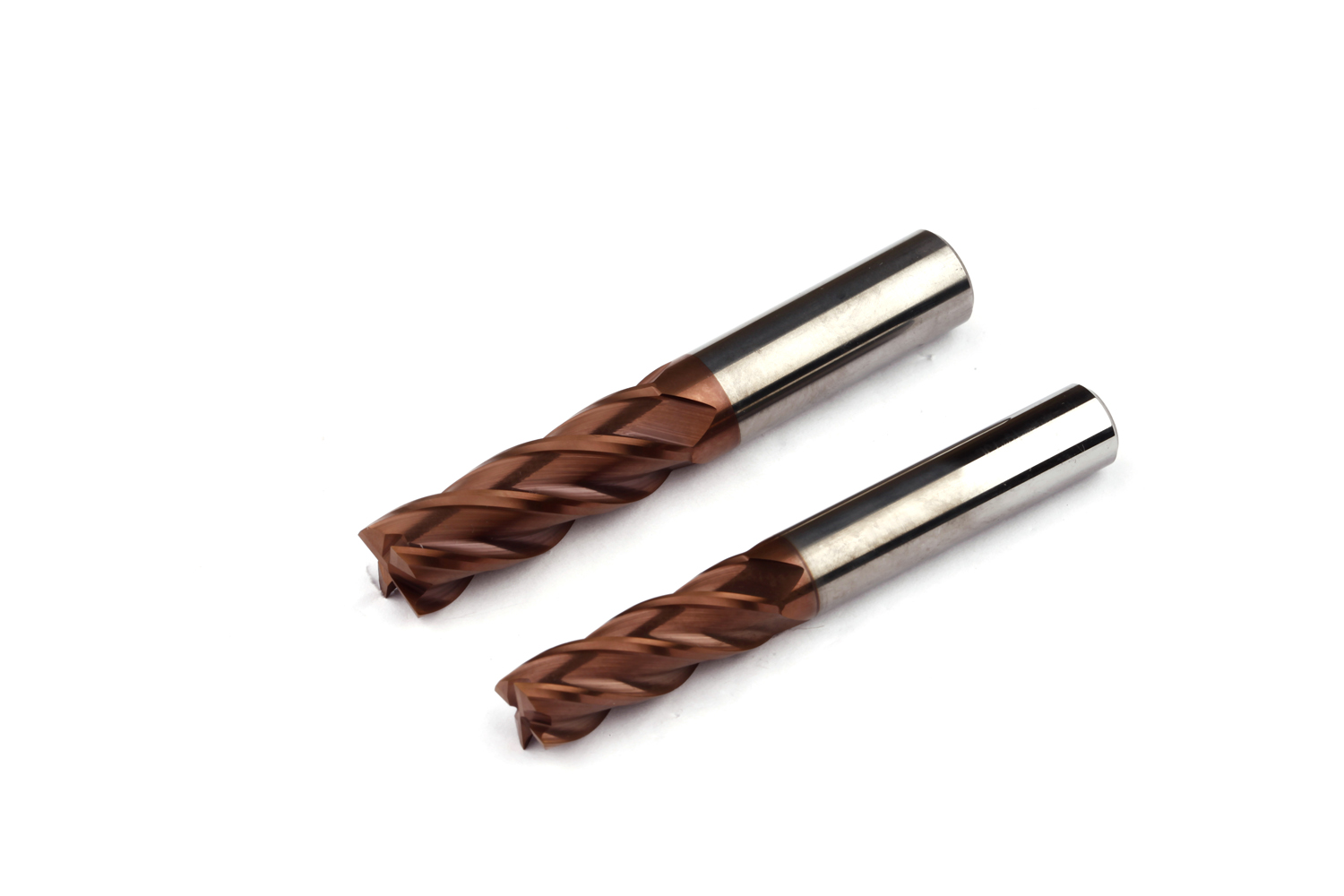

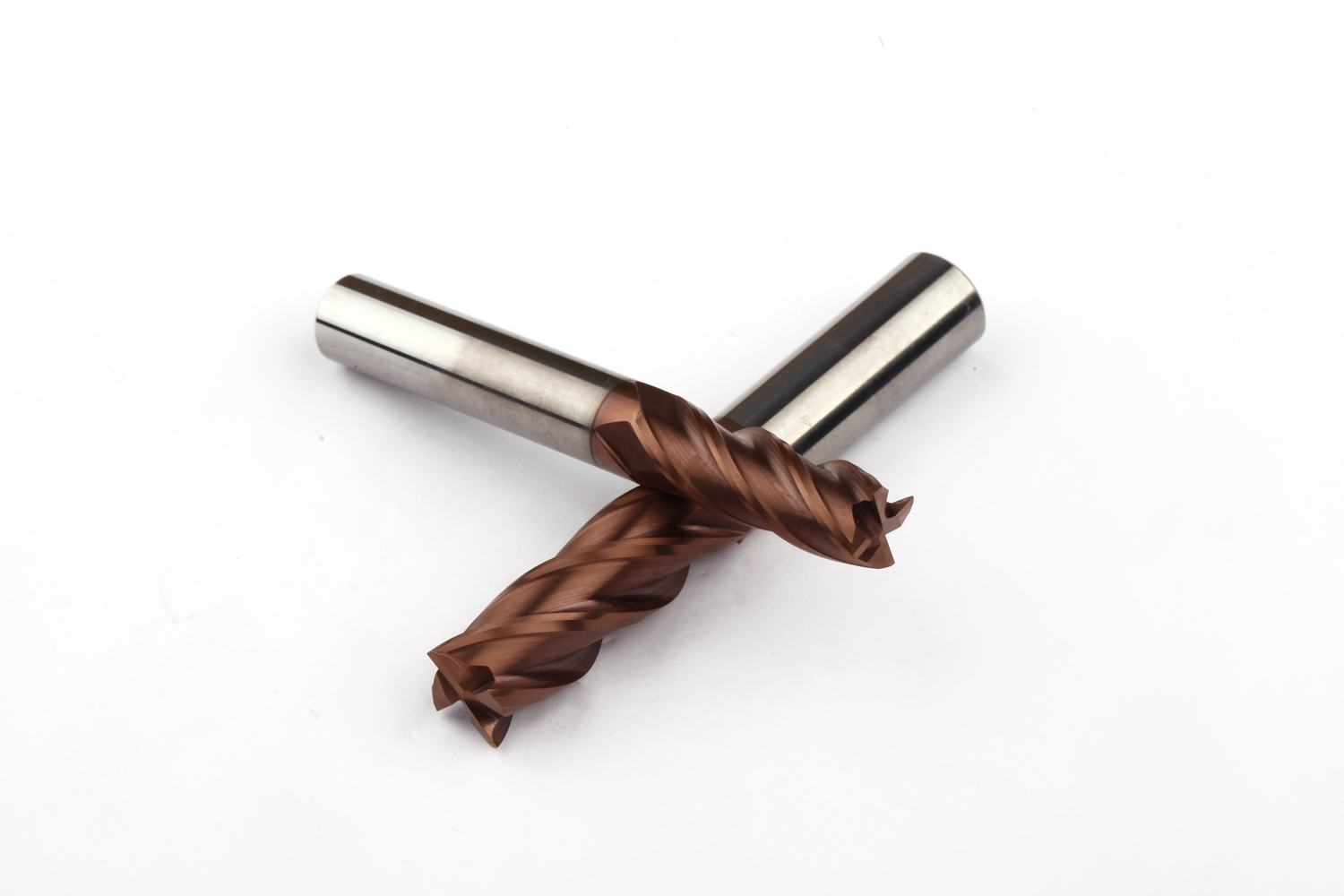

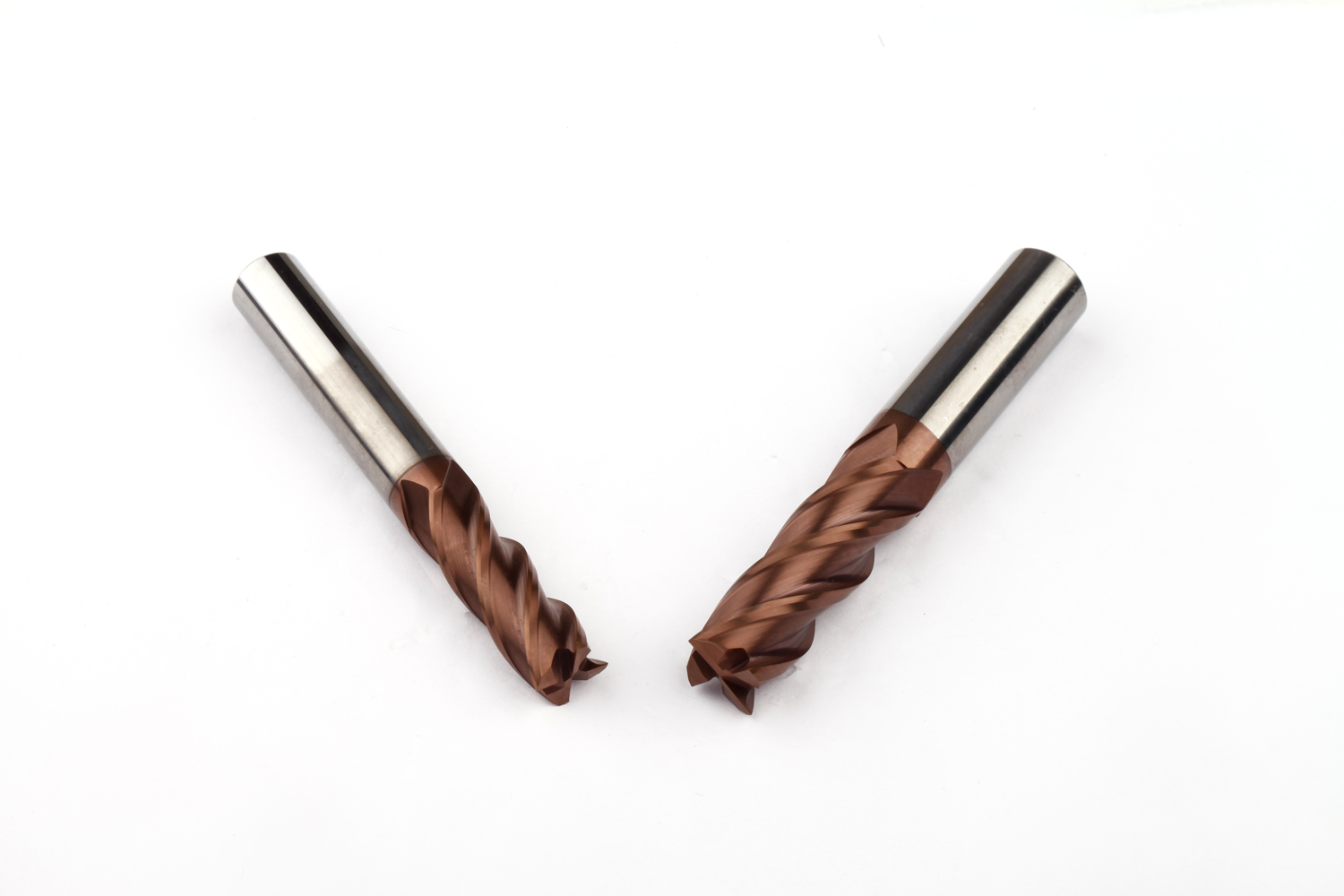

E435SXL


●Premium grade carbide

●4F, Square end, L coating, Economical tools

●Fast delivery. High cost performance.

●Recommend Application: General machining










P/N
D
(mm)
ap
(mm)
d
(mm)
L
(mm)
F# Tip Coating
E435 060 D  75 150 S L 6 45 6 150 4 SQ Microkevlar L
E435 080 D  62 150 S L 8 50 8 150 4 SQ Microkevlar L
E435 100 D  55 150 S L 10 55 10 150 4 SQ Microkevlar L
E435 120 D  50 150 S L 12 60 12 150 4 SQ Microkevlar L
E435 140 D  46 150 S L 14 65 14 150 4 SQ Microkevlar L
E435 160 D  40 150 S L 16 65 16 150 4 SQ Microkevlar L
E435 180 D  41 150 S L 18 75 18 150 4 SQ Microkevlar L
E435 200 D  37 150 S L 20 75 20 150 4 SQ
Microkevlar L




 E435S  SLOTTING
ISO   SMG   ap*Dc ae*Dc  Vc(m / min) Parameters Zn = 4
GROUP


1.5 3 6 10 12 16 20
P
E
1 - 2
0.50  1.00  122 n (rev/min)   25890 12940 6470 3880 3240 2430 1940
fz (mm)  0.005  0.011  0.022  0.036  0.043  0.058  0.072
104 - 140 v(mm/min) 559 559 559 559 560 560 559
 E
3 - 4
0.40  1.00  61 n (rev/min)   12940 6470 3240 1940 1620 1210 970
fz (mm)  0.003  0.007  0.013  0.022  0.027  0.036  0.045
43 - 79 v(mm/min) 174 174 174 174 174 173 174
E
5 - 6
0.30  1.00  30 n (rev/min)   6370 3180 1590 950 800 600 480
fz (mm)  0.003  0.006  0.012  0.019  0.023  0.031  0.038
12 - 49 v(mm/min) 73 73 73 73 74 74 74
M
E
8 - 9
0.50  1.00  98 n (rev/min)   20800 10400 5200 3120 2600 1950 1560
fz (mm)  0.003  0.005  0.011  0.018  0.021  0.028  0.035
88 - 107 v(mm/min) 220 220 220 220 220 220 220
E
10 - 11
0.40  1.00  76 n (rev/min)   16130 8060 4030 2420 2020 1510 1210
fz (mm)  0.002  0.005  0.010  0.016  0.019  0.026  0.032
67 - 85 v(mm/min) 155 155 155 155 155 155 155
K
E
12 - 13
0.50  1.00  82 n (rev/min)   17400 8700 4350 2610 2180 1630 1310
fz (mm)  0.007  0.014  0.028  0.046  0.056  0.074  0.093
64 - 101 v(mm/min) 484 484 484 484 486 484 486
E
14 - 15
0.30  1.00  44 n (rev/min)   9340 4670 2330 1400 1170 880 700
fz (mm)  0.004  0.008  0.016  0.027  0.033  0.044  0.054
26 - 62 v(mm/min) 152 152 152 152 153 153 152
S
 E
19
0.20  1.00  21 n (rev/min)   4460 2230 1110 670 560 420 330
fz (mm)  0.005  0.009  0.018  0.030  0.036  0.048  0.060
12 - 30 v(mm/min) 80 80 80 80 81 81 79
 E
20
0.20  1.00  21 n (rev/min)   4460 2230 1110 670 560 420 330
fz (mm)  0.005  0.009  0.018  0.030  0.036  0.048  0.060
12 - 30 v(mm/min) 80 80 80 80 81 81 79
 E
21
0.20  1.00  21 n (rev/min)   4460 2230 1110 670 560 420 330
fz (mm)  0.005  0.009  0.018  0.030  0.036  0.048  0.060
12 - 30 v(mm/min) 80 80 80 80 81 81 79
 E
22
0.20  1.00  34 n (rev/min)   7220 3610 1800 1080 900 680 540
fz (mm)  0.004  0.008  0.017  0.028  0.034  0.045  0.056
16 - 52 v(mm/min) 121 121 121 121 121 122 121






Machine Machine: BROTHER R450Z1
Power(KW) 29 Spindle speed 18000
Holder BT30 collet ER20
Fixture Special Working way Slotting、Side milling
Workpiece Name Camera Bracket P/N
Material Panacea Stainless Steel Heat treatment   □ Yes
Spec. Hardness: HRC_25-28_
Discription 4F, 1mm, Square 4F, 2mm, Square 4F, 4mm, Square
Brand Coulior cutter Coulior cutter Coulior cutter
P/N E435010F130050SL E435020F130050SL E435040D30050SL
Flute#/Coating 4F,Microkevlar L 4F,Microkevlar L 4F,Microkevlar L
Spindle Speed(RPM) 15000rev/min 12000rev/min 11000rev/min
Depth of Cut(ap) 0.4mm 2 0.15
Width of Cut(ae) 1mm 0.2 4
Cutting speed(Vc) 47m/min 75m/min 138m/min
Feed per tooth(CTP) 0.025mm 0.067mm 0.068mm
Feed (F) 1500mm/min 3200mm/min 3000mm/min
Cutter reach 20mm 20mm 20mm
Cooling Emulsion Emulsion Emulsion
Time/pcs
Tool life 800pcs 750pcs 800pcs
Conclusion Tool life expanded 30% longer against competitor under same working parameter.
