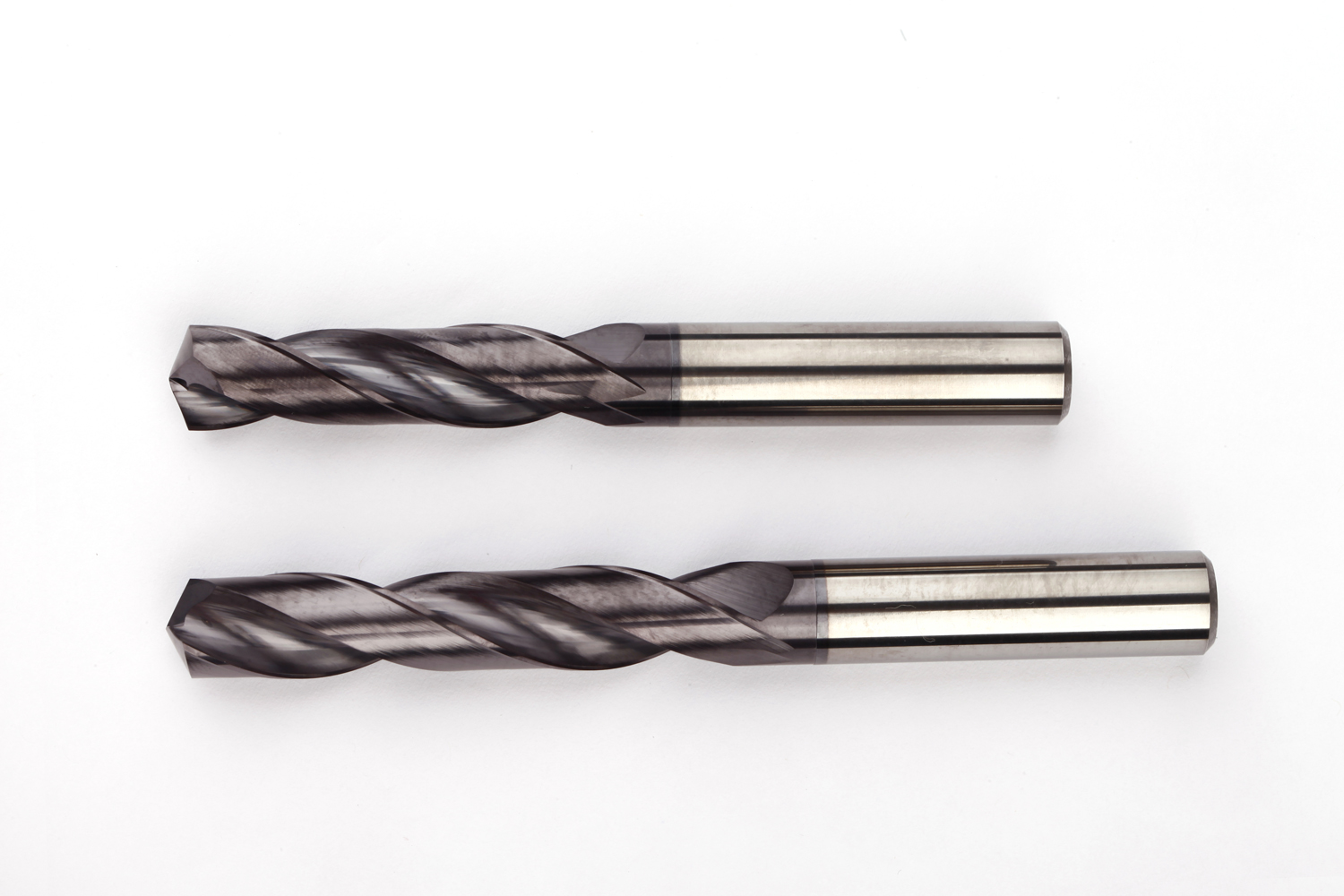

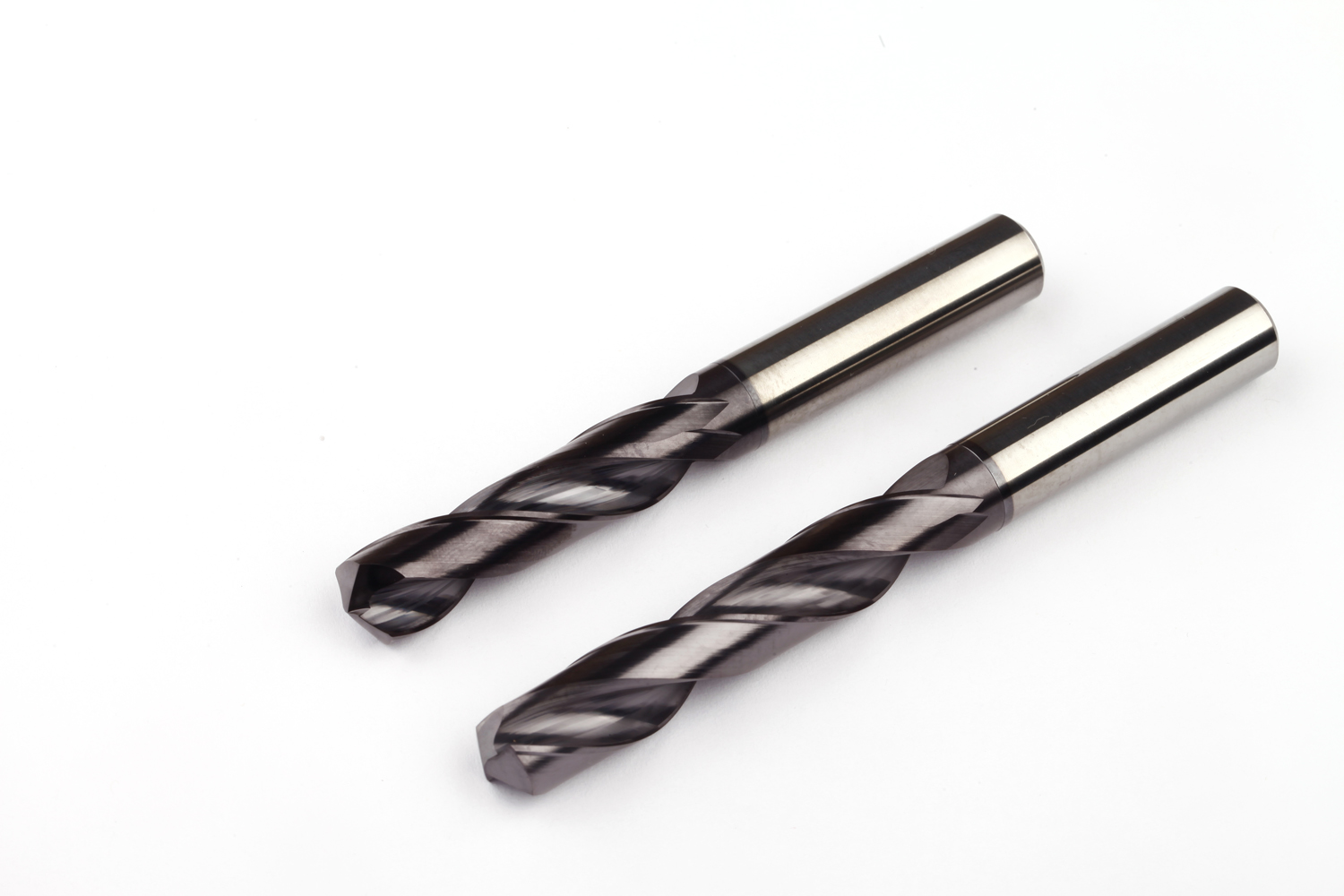

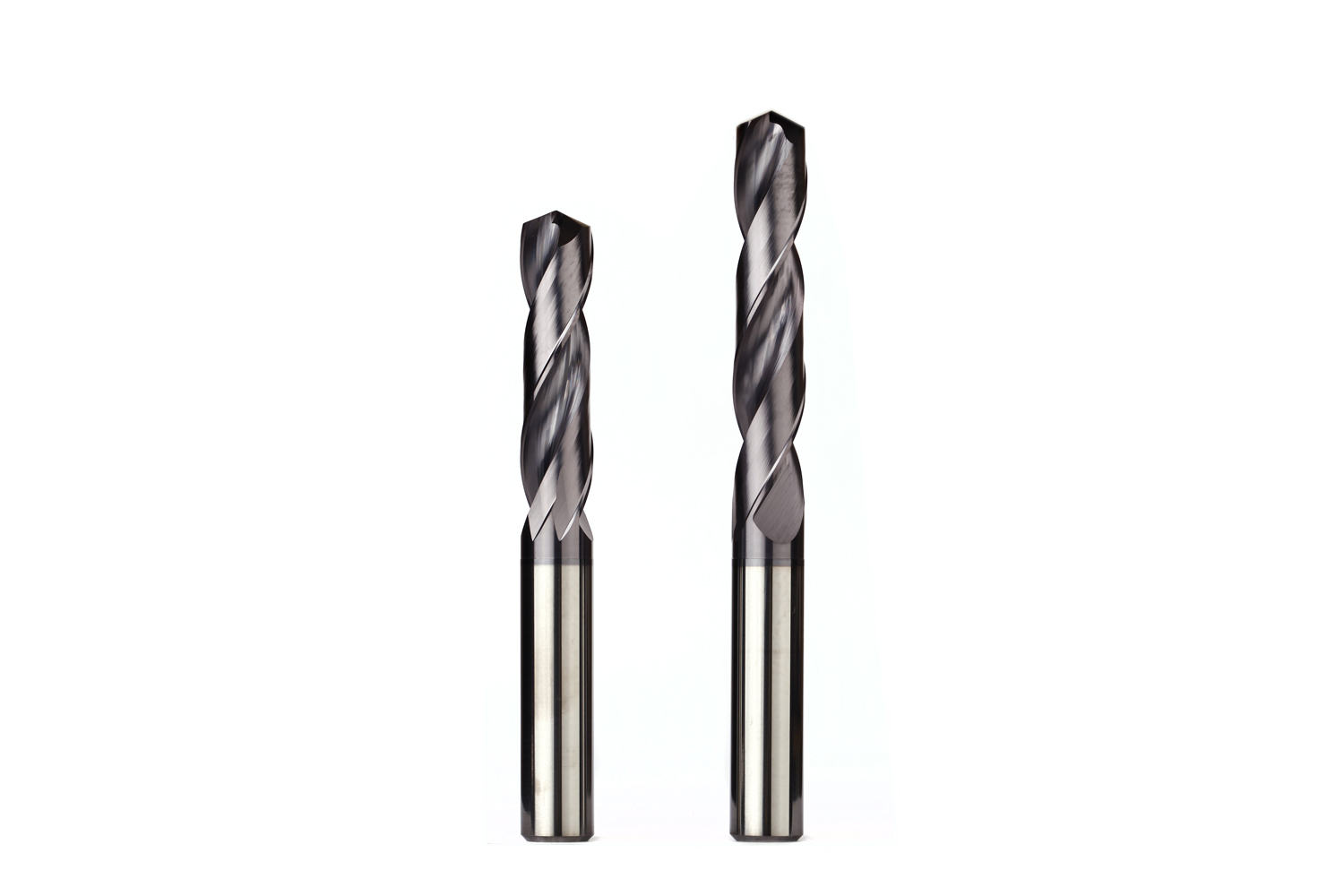

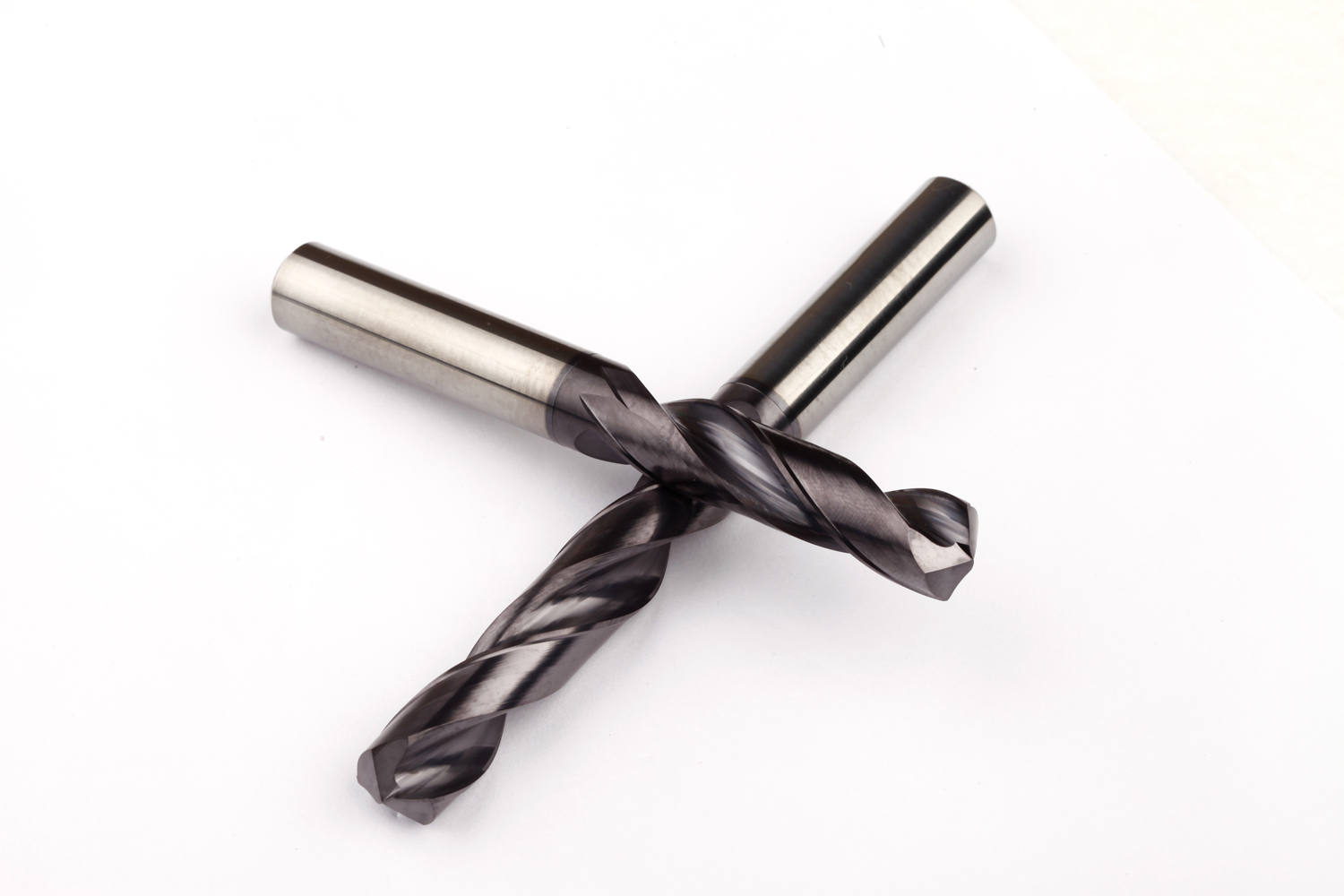

GP 3D



●Premium grade carbide

●General purpose

●2F, 3D, External cooling, D coating, Self centering











P/N
D
（mm）
ap
(mm)
d
(mm)
L
(mm)
F# Coating
GP 0300 F2 020 062 D 3 20 6 62 2 Microkevlar D
GP 0310 F2 020 062 D 3.1 20 6 62 2 Microkevlar D
GP 0320 F2 020 062 D 3.2 20 6 62 2 Microkevlar D
GP 0330 F2 020 062 D 3.3 20 6 62 2 Microkevlar D
GP 0340 F2 020 062 D 3.4 20 6 62 2 Microkevlar D
GP 0350 F2 020 062 D 3.5 20 6 62 2 Microkevlar D
GP 0360 F2 020 062 D 3.6 20 6 62 2 Microkevlar D
GP 0370 F2 020 062 D 3.7 20 6 62 2 Microkevlar D
GP 0380 F2 024 066 D 3.8 24 6 66 2 Microkevlar D
GP 0390 F2 024 066 D 3.9 24 6 66 2 Microkevlar D
GP 0400 F2 024 066 D 4 24 6 66 2 Microkevlar D
GP 0410 F2 024 066 D 4.1 24 6 66 2 Microkevlar D
GP 0420 F2 024 066 D 4.2 24 6 66 2 Microkevlar D
GP 0430 F2 024 066 D 4.3 24 6 66 2 Microkevlar D
GP 0440 F2 024 066 D 4.4 24 6 66 2 Microkevlar D
GP 0450 F2 024 066 D 4.5 24 6 66 2 Microkevlar D
GP 0460 F2 024 066 D 4.6 24 6 66 2 Microkevlar D
GP 0470 F2 024 066 D 4.7 24 6 66 2 Microkevlar D
GP 0480 F2 028 066 D 4.8 28 6 66 2 Microkevlar D
GP 0490 F2 028 066 D 4.9 28 6 66 2 Microkevlar D
GP 0500 F2 028 066 D 5 28 6 66 2 Microkevlar D
GP 0510 F2 028 066 D 5.1 28 6 66 2 Microkevlar D
GP 0520 F2 028 066 D 5.2 28 6 66 2 Microkevlar D
GP 0530 F2 028 066 D 5.3 28 6 66 2 Microkevlar D
GP 0540 F2 028 066 D 5.4 28 6 66 2 Microkevlar D
GP 0550 F2 028 066 D 5.5 28 6 66 2 Microkevlar D
GP 0560 F2 028 066 D 5.6 28 6 66 2 Microkevlar D
GP 0570 F2 028 066 D 5.7 28 6 66 2 Microkevlar D
GP 0580 F2 028 066 D 5.8 28 6 66 2 Microkevlar D
GP 0590 F2 028 066 D 5.9 28 6 66 2 Microkevlar D
GP 0600 D 028 066 D 6 28 6 66 2 Microkevlar D
GP 0610 F3 034 079 D 6.1 34 8 79 2 Microkevlar D
GP 0620 F3 034 079 D 6.2 34 8 79 2 Microkevlar D
GP 0630 F3 034 079 D 6.3 34 8 79 2 Microkevlar D
GP 0640 F3 034 079 D 6.4 34 8 79 2 Microkevlar D
GP 0650 F3 034 079 D 6.5 34 8 79 2 Microkevlar D
GP 0660 F3 034 079 D 6.6 34 8 79 2 Microkevlar D
GP 0670 F3 034 079 D 6.7 34 8 79 2 Microkevlar D
GP 0680 F3 034 079 D 6.8 34 8 79 2 Microkevlar D
GP 0690 F3 034 079 D 6.9 34 8 79 2 Microkevlar D
GP 0700 F3 034 079 D 7 34 8 79 2 Microkevlar D
GP 0710 F3 041 079 D 7.1 41 8 79 2 Microkevlar D
GP 0720 F3 041 079 D 7.2 41 8 79 2 Microkevlar D
GP 0730 F3 041 079 D 7.3 41 8 79 2 Microkevlar D
GP 0740 F3 041 079 D 7.4 41 8 79 2 Microkevlar D
GP 0750 F3 041 079 D 7.5 41 8 79 2 Microkevlar D
GP 0760 F3 041 079 D 7.6 41 8 79 2 Microkevlar D
GP 0770 F3 041 079 D 7.7 41 8 79 2 Microkevlar D
GP 0780 F3 041 079 D 7.8 41 8 79 2 Microkevlar D
GP 0790 F3 041 079 D 7.9 41 8 79 2 Microkevlar D
GP 0800 D 041 079 D 8 41 8 79 2 Microkevlar D
GP 0810 F4 047 089 D 8.1 47 10 89 2 Microkevlar D
GP 0820 F4 047 089 D 8.2 47 10 89 2 Microkevlar D
GP 0830 F4 047 089 D 8.3 47 10 89 2 Microkevlar D
GP 0840 F4 047 089 D 8.4 47 10 89 2 Microkevlar D
GP 0850 F4 047 089 D 8.5 47 10 89 2 Microkevlar D
GP 0860 F4 047 089 D 8.6 47 10 89 2 Microkevlar D
GP 0870 F4 047 089 D 8.7 47 10 89 2 Microkevlar D
GP 0880 F4 047 089 D 8.8 47 10 89 2 Microkevlar D
GP 0890 F4 047 089 D 8.9 47 10 89 2 Microkevlar D
GP 0900 F4 047 089 D 9 47 10 89 2 Microkevlar D
GP 0910 F4 047 089 D 9.1 47 10 89 2 Microkevlar D
GP 0920 F4 047 089 D 9.2 47 10 89 2 Microkevlar D
GP 0930 F4 047 089 D 9.3 47 10 89 2 Microkevlar D
GP 0940 F4 047 089 D 9.4 47 10 89 2 Microkevlar D
GP 0950 F4 047 089 D 9.5 47 10 89 2 Microkevlar D
GP 0960 F4 047 089 D 9.6 47 10 89 2 Microkevlar D
GP 0970 F4 047 089 D 9.7 47 10 89 2 Microkevlar D
GP 0980 F4 047 089 D 9.8 47 10 89 2 Microkevlar D
GP 0990 F4 047 089 D 9.9 47 10 89 2 Microkevlar D
GP 1000 D 047 089 D 10 47 10 89 2 Microkevlar D
GP 1010 F5 055 102 D 10.1 55 12 102 2 Microkevlar D
GP 1020 F5 055 102 D 10.2 55 12 102 2 Microkevlar D
GP 1030 F5 055 102 D 10.3 55 12 102 2 Microkevlar D
GP 1040 F5 055 102 D 10.4 55 12 102 2 Microkevlar D
GP 1050 F5 055 102 D 10.5 55 12 102 2 Microkevlar D
GP 1060 F5 055 102 D 10.6 55 12 102 2 Microkevlar D
GP 1070 F5 055 102 D 10.7 55 12 102 2 Microkevlar D
GP 1080 F5 055 102 D 10.8 55 12 102 2 Microkevlar D
GP 1090 F5 055 102 D 10.9 55 12 102 2 Microkevlar D
GP 1100 F5 055 102 D 11 55 12 102 2 Microkevlar D
GP 1110 F5 055 102 D 11.1 55 12 102 2 Microkevlar D
GP 1120 F5 055 102 D 11.2 55 12 102 2 Microkevlar D
GP 1130 F5 055 102 D 11.3 55 12 102 2 Microkevlar D
GP 1140 F5 055 102 D 11.4 55 12 102 2 Microkevlar D
GP 1150 F5 055 102 D 11.5 55 12 102 2 Microkevlar D
GP 1160 F5 055 102 D 11.6 55 12 102 2 Microkevlar D
GP 1170 F5 055 102 D 11.7 55 12 102 2 Microkevlar D
GP 1180 F5 055 102 D 11.8 55 12 102 2 Microkevlar D
GP 1190 F5 055 102 D 11.9 55 12 102 2 Microkevlar D
GP 1200 D 055 102 D 12 55 12 102 2 Microkevlar D
GP 1230 F6 060 107 D 12.3 60 14 107 2 Microkevlar D
GP 1250 F6 060 107 D 12.5 60 14 107 2 Microkevlar D
GP 1280 F6 060 107 D 12.8 60 14 107 2 Microkevlar D
GP 1300 F6 060 107 D 13 60 14 107 2 Microkevlar D
GP 1350 F6 060 107 D 13.5 60 14 107 2 Microkevlar D
GP 1380 F6 060 107 D 13.8 60 14 107 2 Microkevlar D
GP 1400 D 060 107 D 14 60 14 107 2 Microkevlar D
GP 1450 F7 065 115 D 14.5 65 16 115 2 Microkevlar D
GP 1480 F7 065 115 D 14.8 65 16 115 2 Microkevlar D
GP 1500 F7 065 115 D 15 65 16 115 2 Microkevlar D
GP 1550 F7 065 115 D 15.5 65 16 115 2 Microkevlar D
GP 1580 F7 065 115 D 15.8 65 16 115 2 Microkevlar D
GP 1600 D 065 115 D 16 65 16 115 2 Microkevlar D





GP Speed and Recommendations

ISO

GROUP

CMG            Vc            Parameters  6 8 10 12 14 16
P

           P

 1-3

100 RPM 5270 3950 3160 2640 2260 1980
Min. F/rev. 0.12 0.16 0.2 0.21 0.22 0.25
Max. F/rev. 0.24 0.28 0.3 0.3 0.35 0.36

           P

4-6

75 RPM 3950 2970 2370 1980 1710 1490
Min. F/rev. 0.12 0.16 0.2 0.21 0.22 0.25
Max. F/rev. 0.24 0.28 0.3 0.3 0.35 0.36
K

         K

 12-14

100 RPM 5270 3950 3160 2640 2260 1980
Min. F/rev. 0.12 0.16 0.2 0.21 0.22 0.25
Max. F/rev. 0.24 0.28 0.3 0.3 0.35 0.36
K  15 80 RPM 4220 3160 2530 2120 1810 1590
Min. F/rev. 0.12 0.16 0.2 0.21 0.22 0.25
Max. F/rev. 0.24 0.28 0.3 0.3 0.35 0.36
