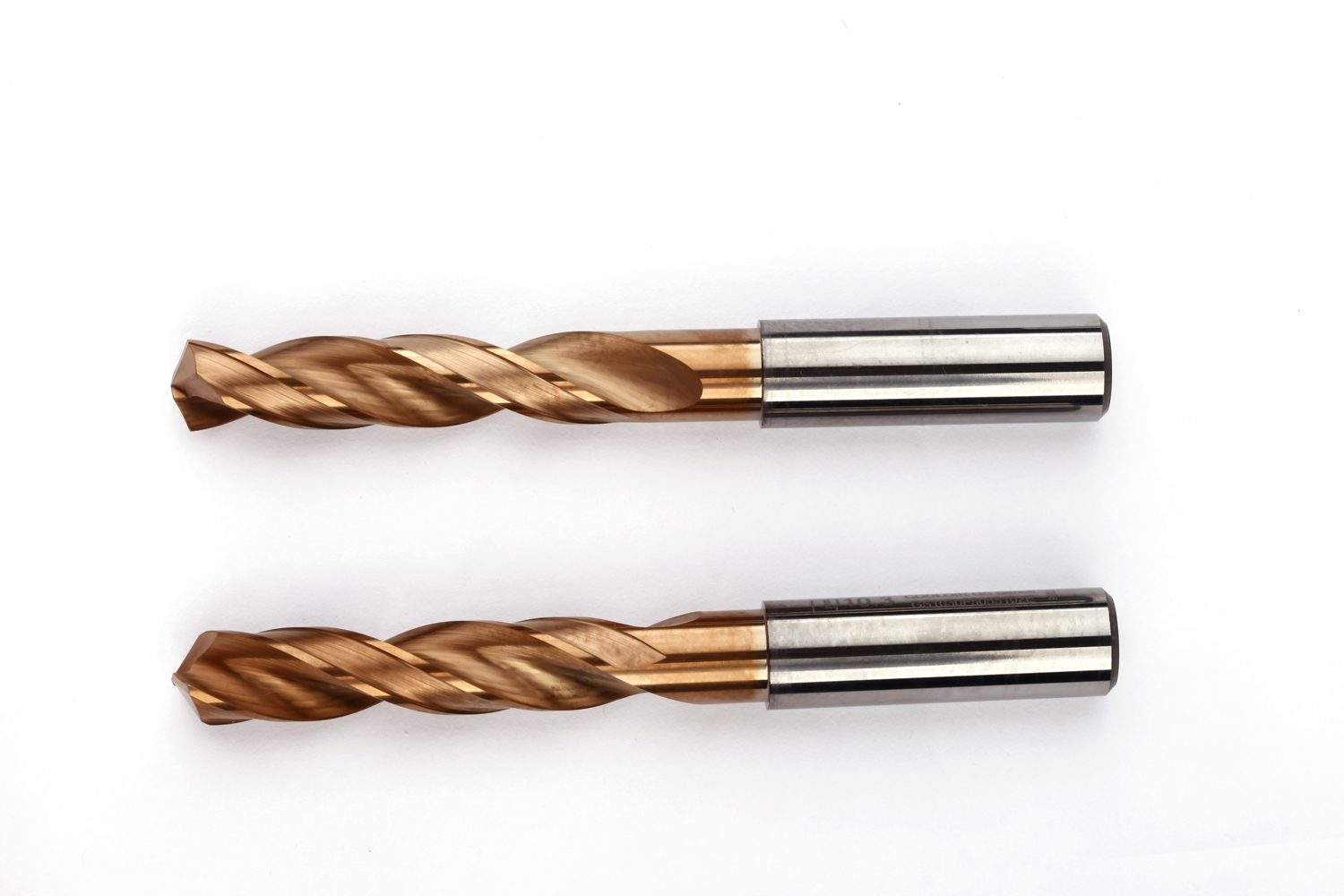

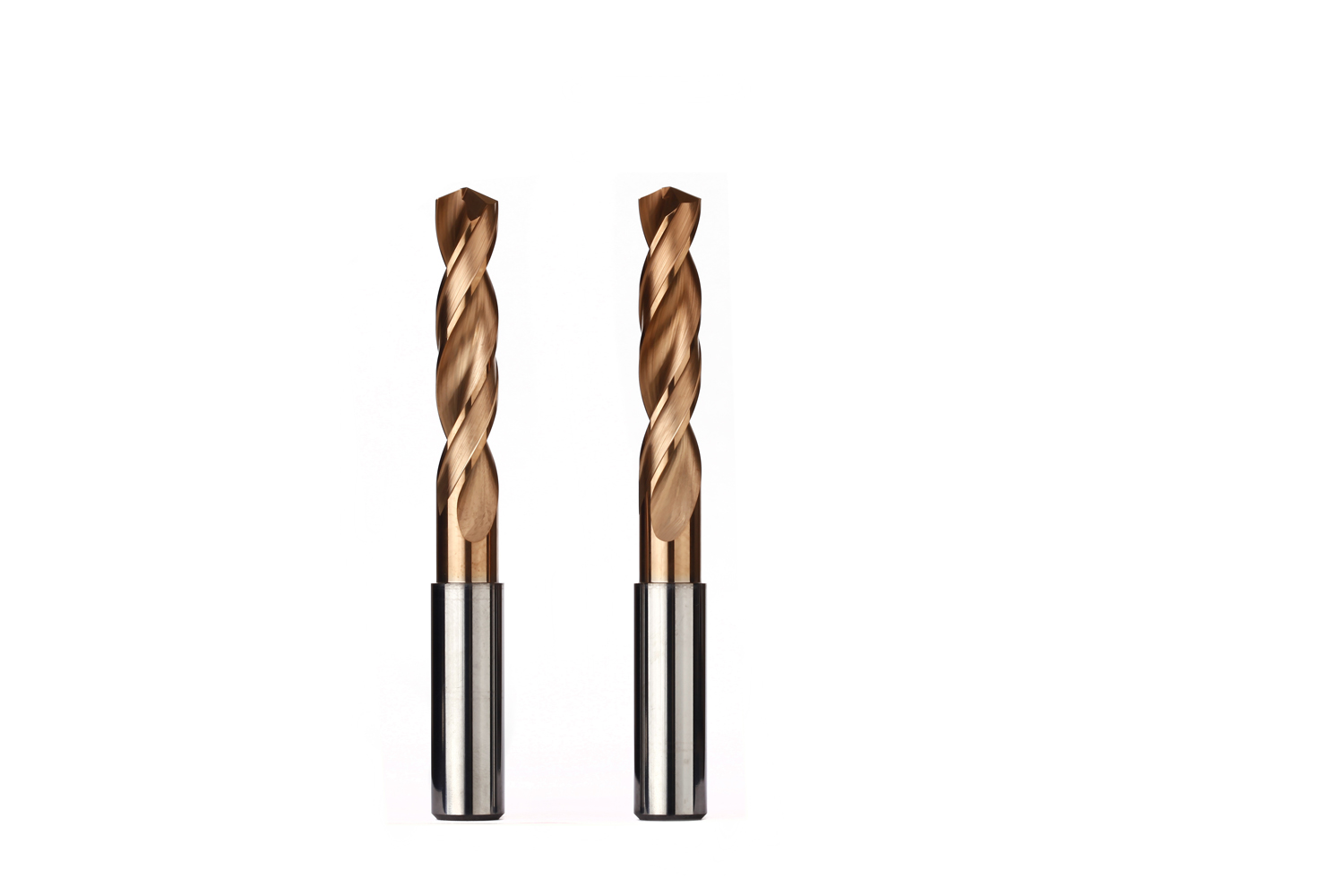

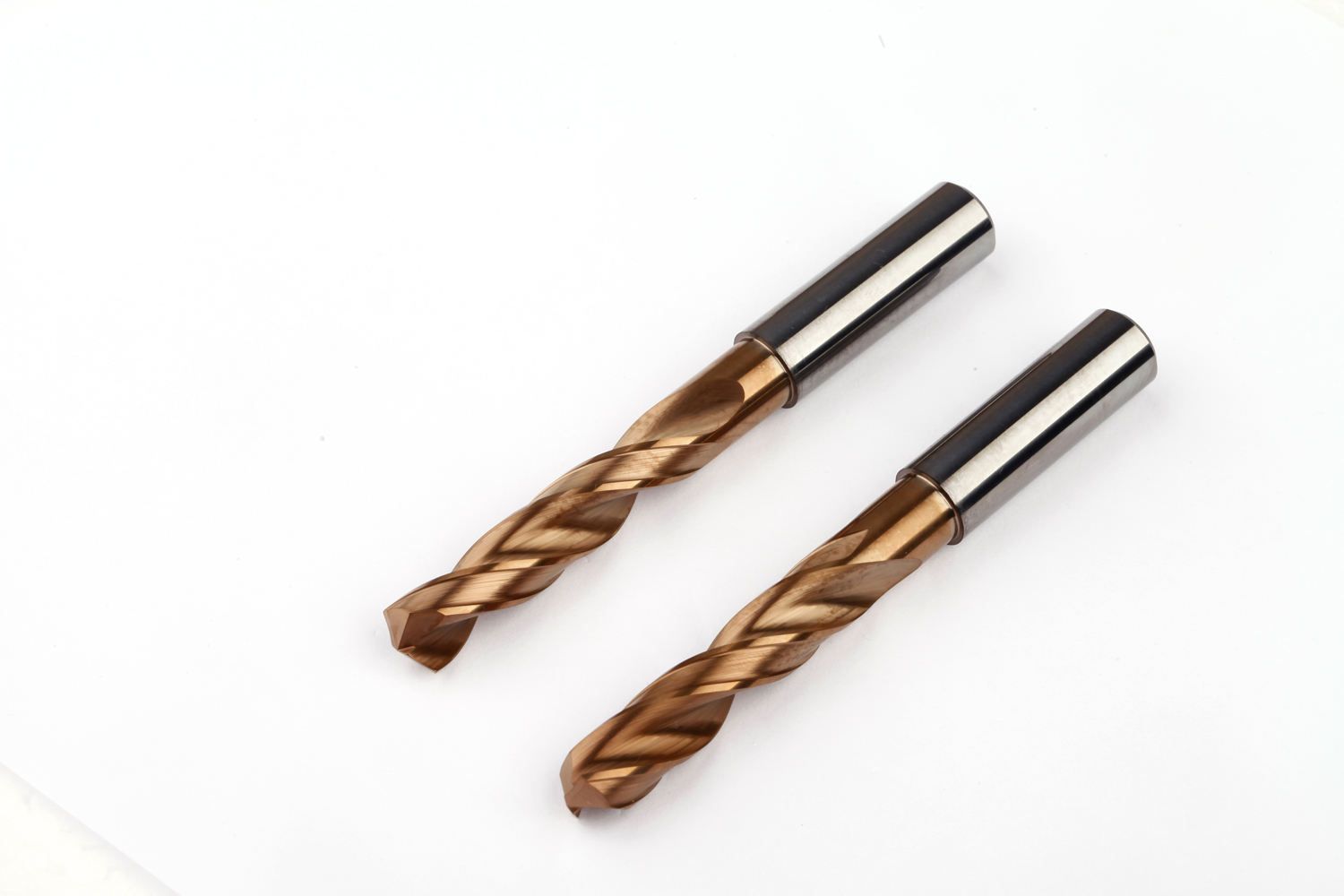

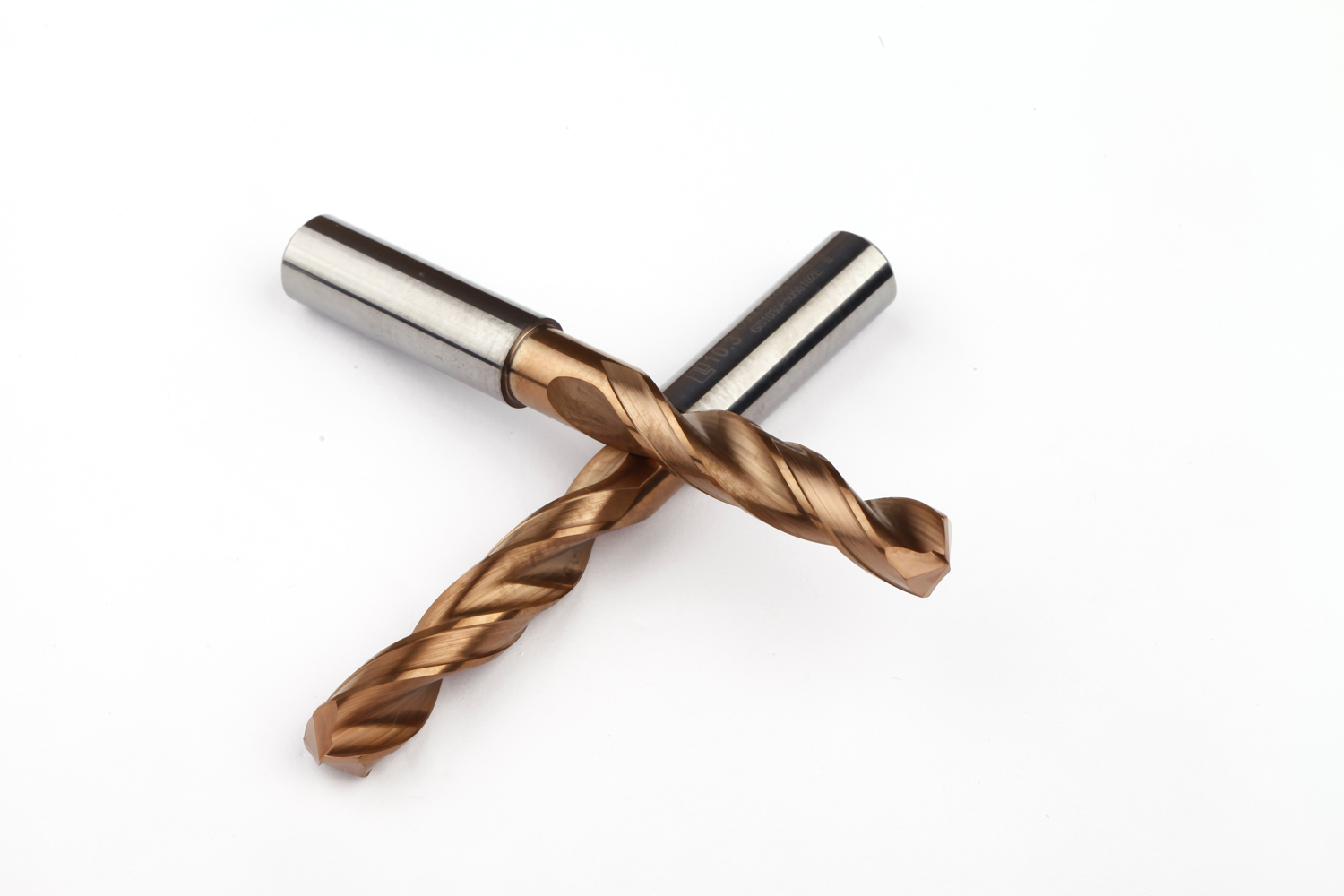

GS3D


●Premium grade carbide

●Suitable for Stainless Steel

●2F, 3D, External cooling, E coating, Self centering











P/N
D
（mm）
ap
(mm)
d
(mm)
L
(mm)
F# Coating
GS 0300 F2 020 062 E 3 20 6 62 2 Microkevlar E
GS 0330 F2 020 062 E 3.3 20 6 62 2 Microkevlar E
GS 0350 F2 020 062 E 3.5 20 6 62 2 Microkevlar E
GS 0370 F2 020 062 E 3.7 20 6 62 2 Microkevlar E
GS 0380 F2 024 066 E 3.8 24 6 66 2 Microkevlar E
GS 0390 F2 024 066 E 3.9 24 6 66 2 Microkevlar E
GS 0400 F2 024 066 E 4 24 6 66 2 Microkevlar E
GS 0420 F2 024 066 E 4.2 24 6 66 2 Microkevlar E
GS 0425 F2 024 066 E 4.25 24 6 66 2 Microkevlar E
GS 0450 F2 024 066 E 4.5 24 6 66 2 Microkevlar E
GS 0460 F2 024 066 E 4.6 24 6 66 2 Microkevlar E
GS 0490 F2 028 066 E 4.9 28 6 66 2 Microkevlar E
GS 0500 F2 028 066 E 5 28 6 66 2 Microkevlar E
GS 0510 F2 028 066 E 5.1 28 6 66 2 Microkevlar E
GS 0530 F2 028 066 E 5.3 28 6 66 2 Microkevlar E
GS 0550 F2 028 066 E 5.5 28 6 66 2 Microkevlar E
GS 0580 F2 028 066 E 5.8 28 6 66 2 Microkevlar E
GS 0590 F2 028 066 E 5.9 28 6 66 2 Microkevlar E
GS 0600 D  028 066 E 6 28 6 66 2 Microkevlar E
GS 0650 F3 034 079 E 6.5 34 8 79 2 Microkevlar E
GS 0670 F3 034 079 E 6.7 34 8 79 2 Microkevlar E
GS 0680 F3 034 079 E 6.8 34 8 79 2 Microkevlar E
GS 0700 F3 034 079 E 7 34 8 79 2 Microkevlar E
GS 0720 F3 034 079 E 7.2 41 8 79 2 Microkevlar E
GS 0730 F3 041 079 E 7.3 41 8 79 2 Microkevlar E
GS 0740 F3 041 079 E 7.4 41 8 79 2 Microkevlar E
GS 0750 F3 041 079 E 7.5 41 8 79 2 Microkevlar E
GS 0780 F3 041 079 E 7.8 41 8 79 2 Microkevlar E
GS 0790 F3 041 079 E 7.9 41 8 79 2 Microkevlar E
GS 0800 D  041 079 E 8 41 8 79 2 Microkevlar E
GS 0810 F4 047 089 E 8.1 47 10 89 2 Microkevlar E
GS 0820 F4 047 089 E 8.2 47 10 89 2 Microkevlar E
GS 0830 F4 047 089 E 8.3 47 10 89 2 Microkevlar E
GS 0840 F4 047 089 E 8.4 47 10 89 2 Microkevlar E
GS 0850 F4 047 089 E 8.5 47 10 89 2 Microkevlar E
GS 0860 F4 047 089 E 8.6 47 10 89 2 Microkevlar E
GS 0870 F4 047 089 E 8.7 47 10 89 2 Microkevlar E
GS 0880 F4 047 089 E 8.8 47 10 89 2 Microkevlar E
GS 0890 F4 047 089 E 8.9 47 10 89 2 Microkevlar E
GS 0900 F4 047 089 E 9 47 10 89 2 Microkevlar E
GS 0930 F4 047 089 E 9.3 47 10 89 2 Microkevlar E
GS 0950 F4 047 089 E 9.5 47 10 89 2 Microkevlar E
GS 0970 F4 047 089 E 9.7 47 10 89 2 Microkevlar E
GS 0980 F4 047 089 E 9.8 47 10 89 2 Microkevlar E
GS 1000 D  047 089 E 10 47 10 89 2 Microkevlar E
GS 1030 F5 055 102 E 10.3 55 12 102 2 Microkevlar E
GS 1040 F5 055 102 E 10.4 55 12 102 2 Microkevlar E
GS 1050 F5 055 102 E 10.5 55 12 102 2 Microkevlar E
GS 1060 F5 055 102 E 10.6 55 12 102 2 Microkevlar E
GS 1080 F5 055 102 E 10.8 55 12 102 2 Microkevlar E
GS 1100 F5 055 102 E 11 55 12 102 2 Microkevlar E
GS 1110 F5 055 102 E 11.1 55 12 102 2 Microkevlar E
GS 1120 F5 055 102 E 11.2 55 12 102 2 Microkevlar E
GS 1150 F5 055 102 E 11.5 55 12 102 2 Microkevlar E
GS 1180 F5 055 102 E 11.8 55 12 102 2 Microkevlar E
GS 1190 F5 055 102 E 11.9 55 12 102 2 Microkevlar E
GS 1200 D  055 102 E 12 55 12 102 2 Microkevlar E
GS 1210 F6 060 107 E 12.1 60 14 107 2 Microkevlar E
GS 1220 F6 060 107 E 12.2 60 14 107 2 Microkevlar E
GS 1250 F6 060 107 E 12.5 60 14 107 2 Microkevlar E
GS 1260 F6 060 107 E 12.6 60 14 107 2 Microkevlar E
GS 1300 F6 060 107 E 13 60 14 107 2 Microkevlar E
GS 1310 F6 060 107 E 13.1 60 14 107 2 Microkevlar E
GS 1350 F6 060 107 E 13.5 60 14 107 2 Microkevlar E
GS 1400 D  060 107 E 14 60 14 107 2 Microkevlar E
GS 1450 F7 065 115 E 14.5 65 16 115 2 Microkevlar E
GS 1460 F7 065 115 E 14.6 65 16 115 2 Microkevlar E
GS 1500 F7 065 115 E 15 65 16 115 2 Microkevlar E
GS 1520 F7 065 115 E 15.2 65 16 115 2 Microkevlar E
GS 1550 F7 065 115 E 15.5 65 16 115 2 Microkevlar E
GS 1560 F7 065 115 E 15.6 65 16 115 2 Microkevlar E
GS 1600 D  065 115 E 16 65 16 115 2 Microkevlar E








ISO GROUP

Vc（m/min）
f（mm/rev）
External cooling Internal cooling Φ3 Φ4 Φ6 Φ8 Φ10 Φ12 Φ14 Φ16
P 1 100-140 60-180 0.09-0.13 0.11-0.15 0.14-0.19 0.19-0.25 0.23-0.30 0.24-0.33 0.28-0.38 0.30-0.40
2-3 80-130 60-160 0.09-0.13 0.11-0.15 0.14-0.19 0.19-0.25 0.23-0.30 0.24-0.33 0.28-0.38 0.30-0.40
4-5 70-100 60-130 0.09-0.12 0.10-0.14 0.13-0.17 0.17-0.23 0.21-0.28 0.22-0.30 0.26-0.35 0.28-0.37
6 60-80 60-100 0.08-0.10 0.09-0.12 0.11-0.15 0.15-0.20 0.18-0.24 0.20-0.26 0.23-0.30 0.24-0.32
H 7 50-60 60-80 0.06-0.08 0.07-0.10 0.09-0.12 0.12-0.16 0.14-0.19 0.16-0.21 0.18-0.24 0.19-0.26
M 8-9* 40-60 50-80 0.05-0.09 0.06-0.11 0.07-0.14 0.10-0.17 0.12-0.21 0.13-0.23 0.15-0.26 0.16-0.28
10* 30-50 40-70 0.04-0.07 0.05-0.09 0.06-0.11 0.08-0.14 0.10-0.16 0.11-0.18 0.12-0.21 0.13-0.23
11* 20-40 30-60 0.03-0.05 0.04-0.06 0.05-0.08 0.07-0.11 0.08-0.13 0.09-0.15 0.10-0.17 0.11-0.18
K 12 80-110 60-140 0.13-0.17 0.15-0.20 0.19-0.26 0.26-0.34 0.31-0.41 0.33-0.44 0.38-0.51 0.41-0.54
13-14 60-100 60-120 0.11-0.15 0.14-0.18 0.17-0.23 0.23-0.30 0.27-0.36 0.29-0.39 0.34-0.45 0.36-0.48
15 60-70 60-90 0.06-0.09 0.08-0.10 0.10-0.13 0.13-0.17 0.15-0.20 0.17-0.22 0.19-0.26 0.20-0.27
N 18 135-240 120-255 0.13-0.16 0.15-0.19 0.22-0.28 0.25-0.32 0.31-0.38 0.33-0.42 0.38-0.48 0.41-0.51


Machine  Machine: HARDINGE GX1300
Power（KW） 26 Spindle speed 10000
Holder BT40 Collet ER32
Fixture Special Processing Drilling
Workpiece Name Exhaust pipe P/N
Material High Nickel Cast Steel Heat treatment   □ Yes
Spec. Hardness： HRC_25-35_
Discription 5.1mm drill 5.1mm drill 5.1mm drill
Brand Couloir  Cutter Couloir  Cutter Competitor S
P/N GS0510F2028066E BF-3923 Famous brand
Flute#/Coating 2F，Microkevlar E 2F，Microkevlar H 2F w/coating
Spindle Speed（RPM) 1300rev/min 1300rev/min 1300rev/min
Depth of Cut(ap） 22mm pecking drilling 22mm pecking drilling 22mm pecking drilling
Width of Cut(ae）
Cutting speed（Vc） 21m/min 21m/min 21m/min
Feed per tooth（CTP) 0.115mm/rev 0.115mm/rev 0.115mm/rev
Feed (F） 150mm/min 150mm/min 150mm/min
Cutter reach 35mm 35mm 35mm
Cooling Emulsion Emulsion Emulsion
Tool life 422 holes 426 holes 418 holes
Conclusion

Price is about 2/3 against competitor's.  And BF-3923 and GS0510F2028066E have life stability deviation at

 4.3% when supplying in batch.
